ESP32 Ultrasonic Sensor with Arduino IDE

/*
  Filename: ol_ultrasonic_distance.ino
  Description: Measure distance using HC-SR04 ultrasonic sensor and ESP32
  Author: www.oceanlabz.in
  Modification: 1/4/2025
*/

#define TRIG_PIN  5    // GPIO pin connected to TRIG of HC-SR04
#define ECHO_PIN  18   // GPIO pin connected to ECHO of HC-SR04

long duration;
float distanceCm;

void setup() {
  Serial.begin(115200);        // Initialize serial communication
  pinMode(TRIG_PIN, OUTPUT);   // Set TRIG pin as output
  pinMode(ECHO_PIN, INPUT);    // Set ECHO pin as input
}

void loop() {
  // Send a 10µs pulse to trigger pin
  digitalWrite(TRIG_PIN, LOW);
  delayMicroseconds(2);
  digitalWrite(TRIG_PIN, HIGH);
  delayMicroseconds(10);
  digitalWrite(TRIG_PIN, LOW);

  // Read echo time
  duration = pulseIn(ECHO_PIN, HIGH);

  // Convert time to distance (speed of sound = 0.034 cm/µs)
  distanceCm = duration * 0.034 / 2;

  // Display distance on serial monitor
  Serial.print("Distance: ");
  Serial.print(distanceCm);
  Serial.println(" cm");

  delay(500);  // Wait half a second before next reading
}

/*
Filename: ol_ultrasonic_smooth.ino
Description: Smooth ultrasonic sensor readings using exponential moving average
Author: www.oceanlabz.in
Modification: 1/4/2025
*/

#define TRIG_PIN 5        // HC-SR04 Trigger pin
#define ECHO_PIN 18       // HC-SR04 Echo pin

float ol_smooth_distance = -1;           // Stores the smoothed distance
const float ol_smooth_factor = 0.2;      // 0.0 (no new data) to 1.0 (no smoothing)
const float ol_update_threshold = 1.0;   // Minimum difference to print new value

void setup() {
  Serial.begin(115200);
  pinMode(TRIG_PIN, OUTPUT);
  pinMode(ECHO_PIN, INPUT);
}

/**
 * ol_measure_distance
 * Sends trigger and measures echo pulse duration.
 * Returns distance in centimeters or -1 if timeout.
 */
float ol_measure_distance() {
  digitalWrite(TRIG_PIN, LOW);
  delayMicroseconds(2);
  digitalWrite(TRIG_PIN, HIGH);
  delayMicroseconds(10);
  digitalWrite(TRIG_PIN, LOW);

  long duration = pulseIn(ECHO_PIN, HIGH, 30000); // 30ms timeout
  if (duration == 0) return -1.0; // Timeout
  return duration * 0.0343 / 2.0; // Convert time to distance (cm)
}

/**
 * ol_smooth_value
 * Returns weighted average of old and new values.
 * Formula: smoothed = (new × factor) + (old × (1 - factor))
 */

//  Previous smoothed value = 100
//  New reading = 120
//  smoothFactor = 0.2
//  smoothed eg = (120 × 0.2) + (100 × 0.8)
//          = 24 + 80
//          = 104
// So, instead of jumping straight to 120, the output slowly moves from 100 → 104 → and so on. This makes the reading much more stable.

float ol_smooth_value(float old_val, float new_val, float factor) {
  return (new_val * factor) + (old_val * (1.0 - factor));
}

void loop() {
  float raw = ol_measure_distance();
  if (raw > 0) {
    // Initialize smoothed distance if first run
    if (ol_smooth_distance < 0) {
      ol_smooth_distance = raw;
    } else {
      ol_smooth_distance = ol_smooth_value(ol_smooth_distance, raw, ol_smooth_factor);
    }

    // Print only if there's significant change
    static float last_printed = -1;
    if (abs(ol_smooth_distance - last_printed) > ol_update_threshold) {
      last_printed = ol_smooth_distance;
      Serial.print("Distance (cm): ");
      Serial.println(ol_smooth_distance, 2);
    }
  }

  delay(50); // Short delay between readings
}

/*
Filename: ol_ultrasonic_stable.ino
Description: Stable ultrasonic distance measurement using median filtering
Author: www.oceanlabz.in
Modification: 1/4/2025
*/

#define TRIG_PIN 5        // HC-SR04 Trigger pin connected to GPIO 5
#define ECHO_PIN 18       // HC-SR04 Echo pin connected to GPIO 18

const int numSamples = 5;                   // Number of samples for filtering
long distanceSamples[numSamples];           // Array to store recent distance readings
int sampleIndex = 0;                        // Current index in the sample array
float lastStableDistance = -1;              // Last stable distance
const float updateThreshold = 1.0;          // Minimum change required to print new distance (in cm)

void setup() {
  Serial.begin(115200);
  pinMode(TRIG_PIN, OUTPUT);
  pinMode(ECHO_PIN, INPUT);
}

/**
 * ol_MeasureDistance
 * Sends a pulse and measures the time taken for the echo to return.
 * Returns the distance in cm. Returns -1 if timeout or error.
 */
float ol_measure_distance() {
  digitalWrite(TRIG_PIN, LOW);
  delayMicroseconds(2);
  digitalWrite(TRIG_PIN, HIGH);
  delayMicroseconds(10);
  digitalWrite(TRIG_PIN, LOW);

  long duration = pulseIn(ECHO_PIN, HIGH, 30000); // 30ms timeout to avoid blocking

  if (duration == 0) return -1.0; // No echo received
  float distance = duration * 0.0343 / 2.0; // Convert time to distance in cm
  return distance;
}

/**
 * ol_get_median
 * Sorts the array and returns the middle (median) value.
 * Useful for filtering out spikes and noisy readings.
 */
float ol_get_median(long *arr, int size) {
  long temp[size];
  memcpy(temp, arr, sizeof(long) * size);

  // Simple bubble sort for small arrays
  for (int i = 0; i < size - 1; i++) {
    for (int j = 0; j < size - i - 1; j++) {
      if (temp[j] > temp[j + 1]) {
        long t = temp[j];
        temp[j] = temp[j + 1];
        temp[j + 1] = t;
      }
    }
  }

  return temp[size / 2];
}

void loop() {
  // Take a new distance measurement and store it
  float distance = ol_measure_distance();
  distanceSamples[sampleIndex] = distance;

  // Update the index for the next sample
  sampleIndex = (sampleIndex + 1) % numSamples;

  // Only process when we’ve collected a full set of samples
  if (sampleIndex == 0) {
    float stable = ol_get_median(distanceSamples, numSamples);

    Serial.print("Distance (cm): ");
    Serial.println(stable);
  }

  delay(50); // Small delay between measurements
}

/*
  Filename: ol_SONAR_PERSON_COUNTER.ino

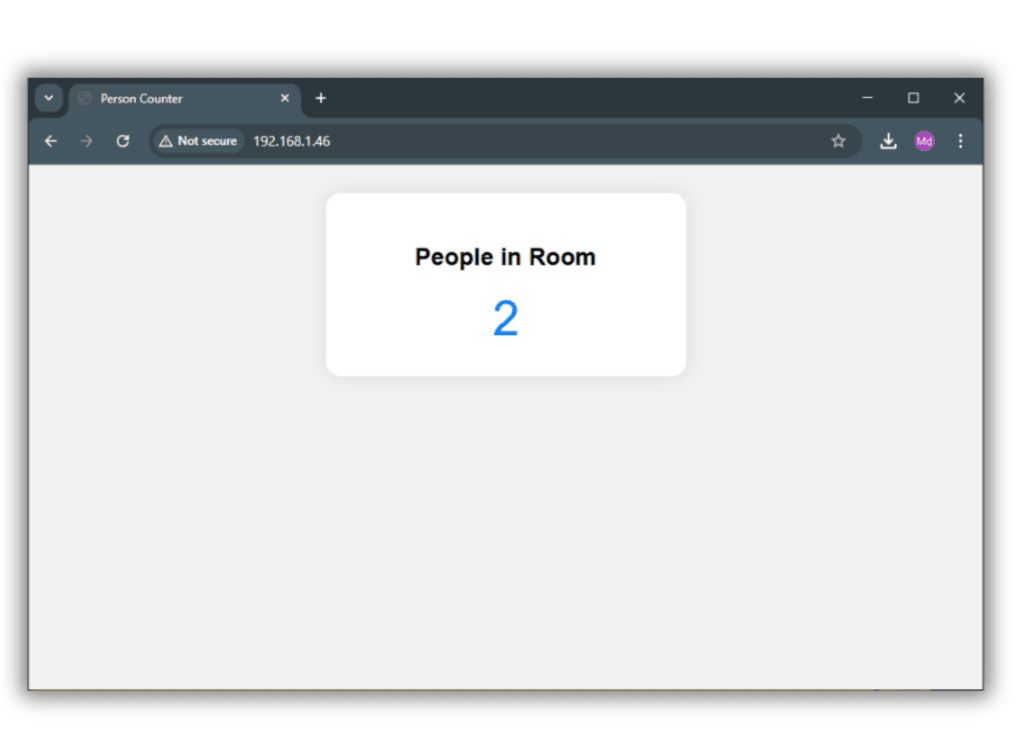

  Description: ESP32-based person counter using an ultrasonic sensor with web interface
  Author: www.oceanlabz.in
  Modification: 1/4/2025
*/


#include <WiFi.h>
#include <WebServer.h>

#define TRIG_PIN 5
#define ECHO_PIN 18

// Wi-Fi Credentials
const char* ssid = "YOUR_SSID";
const char* password = "YOUR_PASSWORD";

WebServer server(80);

int person_count = 0;

// Detection parameters
const float trigger_distance_max = 80.0; // cm
const float trigger_distance_min = 3.0;  // cm
const int required_hits = 5;

int consecutive_hits = 0;
bool detection_active = false;

const char* index_html = R"rawliteral(
<!DOCTYPE html>
<html>
<head>
  <title>Person Counter</title>
  <meta name="viewport" content="width=device-width, initial-scale=1">
  <style>
    body { font-family: Arial; text-align: center; background: #f2f2f2; padding: 20px; }
    .card {
      background: white; padding: 30px; margin: auto; max-width: 300px;
      border-radius: 15px; box-shadow: 0 0 20px rgba(0,0,0,0.1);
    }
    .count {
      font-size: 48px; color: #007bff; margin-top: 10px;
    }
  </style>
</head>
<body>
  <div class="card">
    <h2>People in Room</h2>
    <div class="count" id="count">0</div>
  </div>
  <script>
    setInterval(() => {
      fetch("/count")
        .then(res => res.text())
        .then(data => {
          document.getElementById("count").textContent = data;
        });
    }, 1000);
  </script>
</body>
</html>
)rawliteral";

// Measure distance using ultrasonic sensor
float measure_distance() {
  digitalWrite(TRIG_PIN, LOW);
  delayMicroseconds(2);
  digitalWrite(TRIG_PIN, HIGH);
  delayMicroseconds(10);
  digitalWrite(TRIG_PIN, LOW);

  long duration = pulseIn(ECHO_PIN, HIGH, 30000); // 30ms timeout
  if (duration == 0) return -1.0; // Timeout
  return duration * 0.0343 / 2.0;
}

// Check if a person crossed the sensor
void check_person_crossing() {
  float distance = measure_distance();
  if (distance <= 0) return;

  if (distance > trigger_distance_min && distance < trigger_distance_max) {
    consecutive_hits++;
    if (consecutive_hits >= required_hits && !detection_active) {
      detection_active = true;
      person_count++;
      Serial.print("Person Detected! Count: ");
      Serial.println(person_count);
    }
  } else {
    consecutive_hits = 0;
    detection_active = false;
  }
}

void setup() {

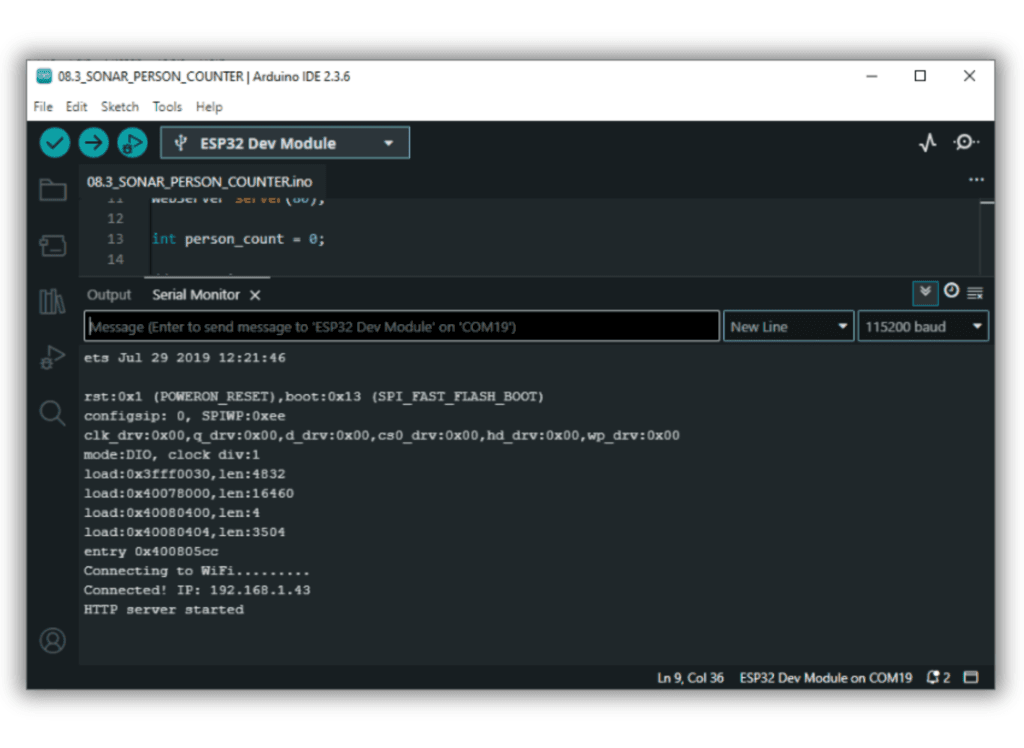

  Serial.begin(115200);
  pinMode(TRIG_PIN, OUTPUT);
  pinMode(ECHO_PIN, INPUT);

  WiFi.begin(ssid, password);
  Serial.print("Connecting to WiFi...");
  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }
  Serial.println("\nConnected! IP: " + WiFi.localIP().toString());

  // Basic WebServer handler
  server.on("/", HTTP_GET, []() {
    server.send(200, "text/html", index_html);
  });

  server.on("/count", HTTP_GET, []() {
    server.send(200, "text/plain", String(person_count));
  });

  server.begin();
  Serial.println("HTTP server started");
}

void loop() {
  server.handleClient(); // MUST be called frequently for WebServer

  check_person_crossing();

  delay(100); // Give time for Wi-Fi stack, prevent flooding
}
