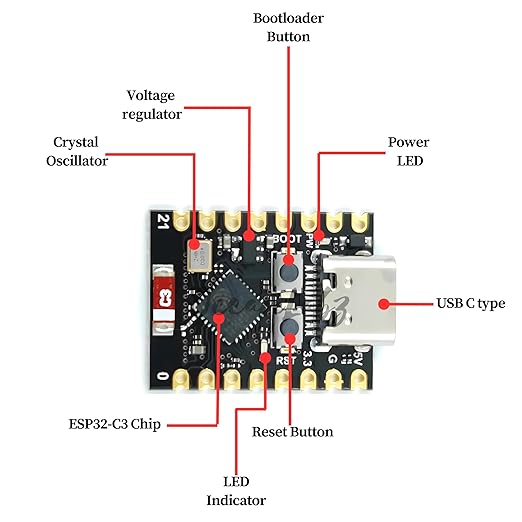

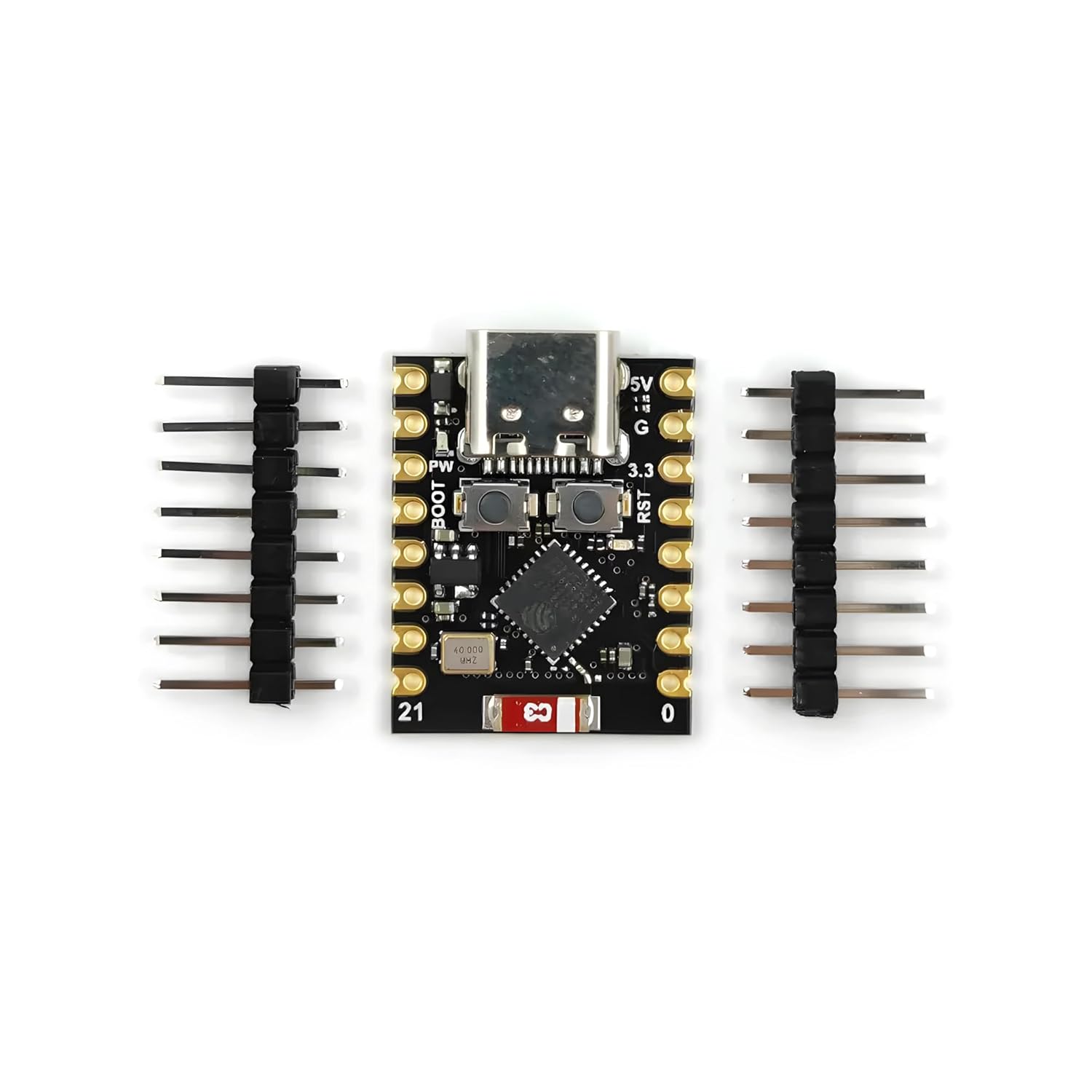

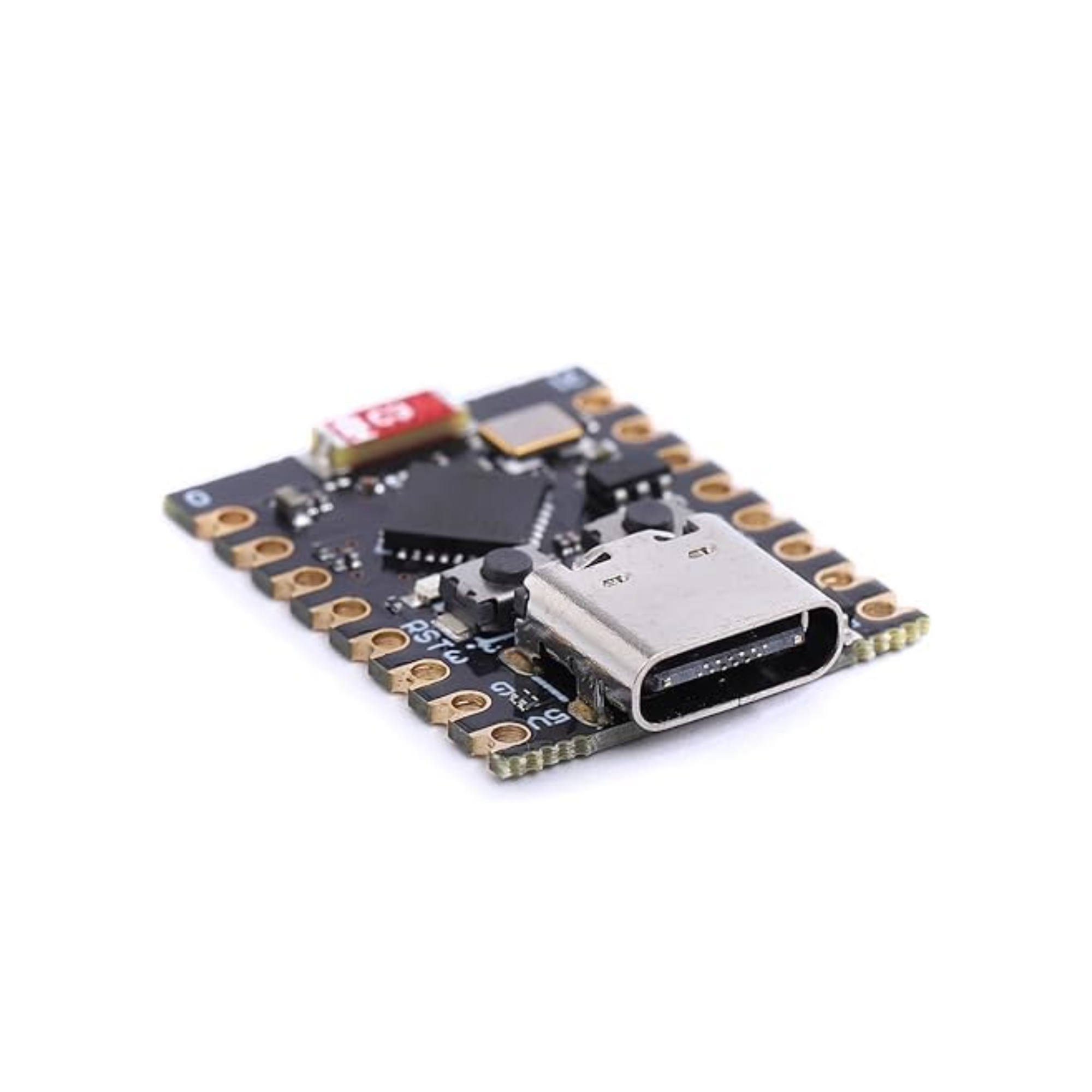

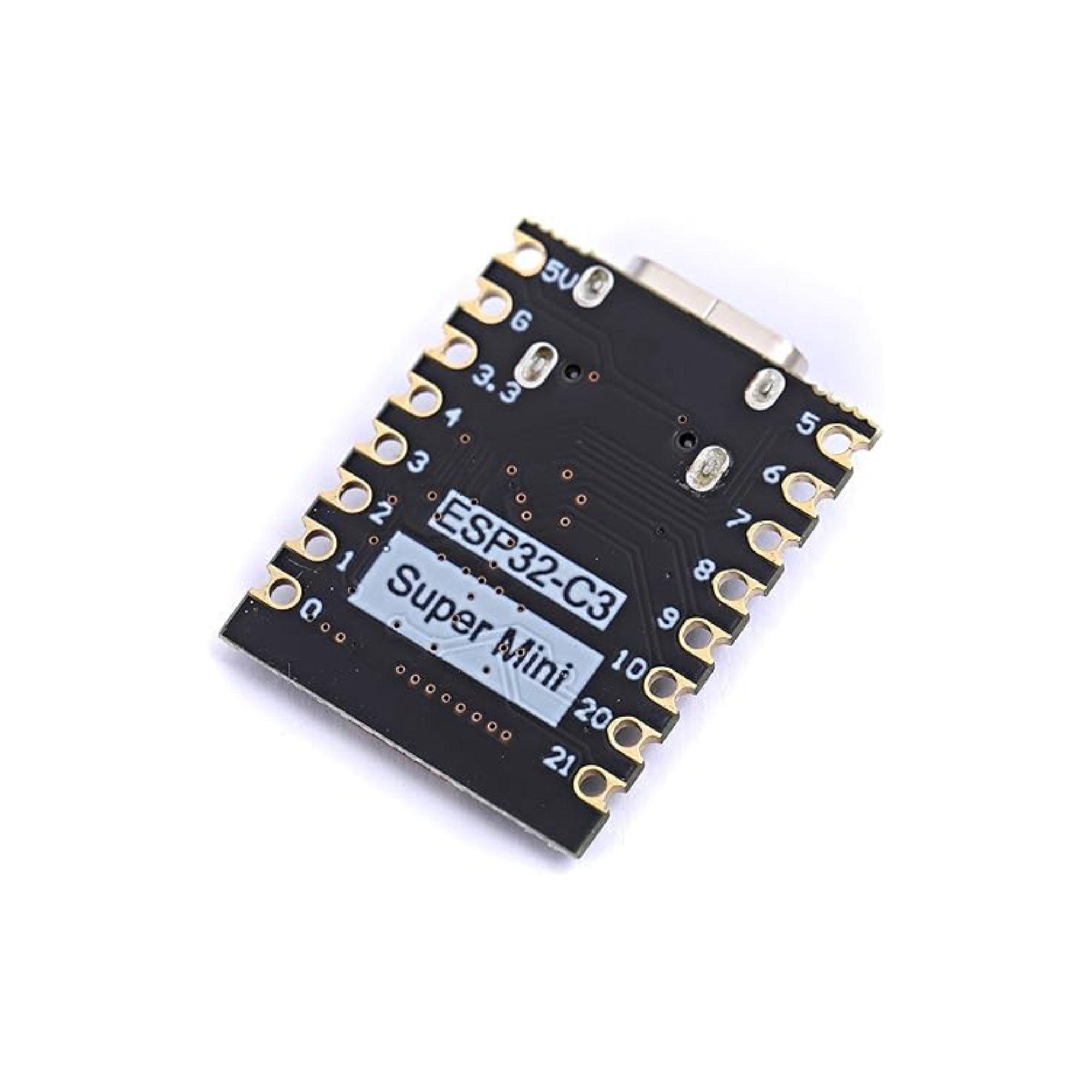

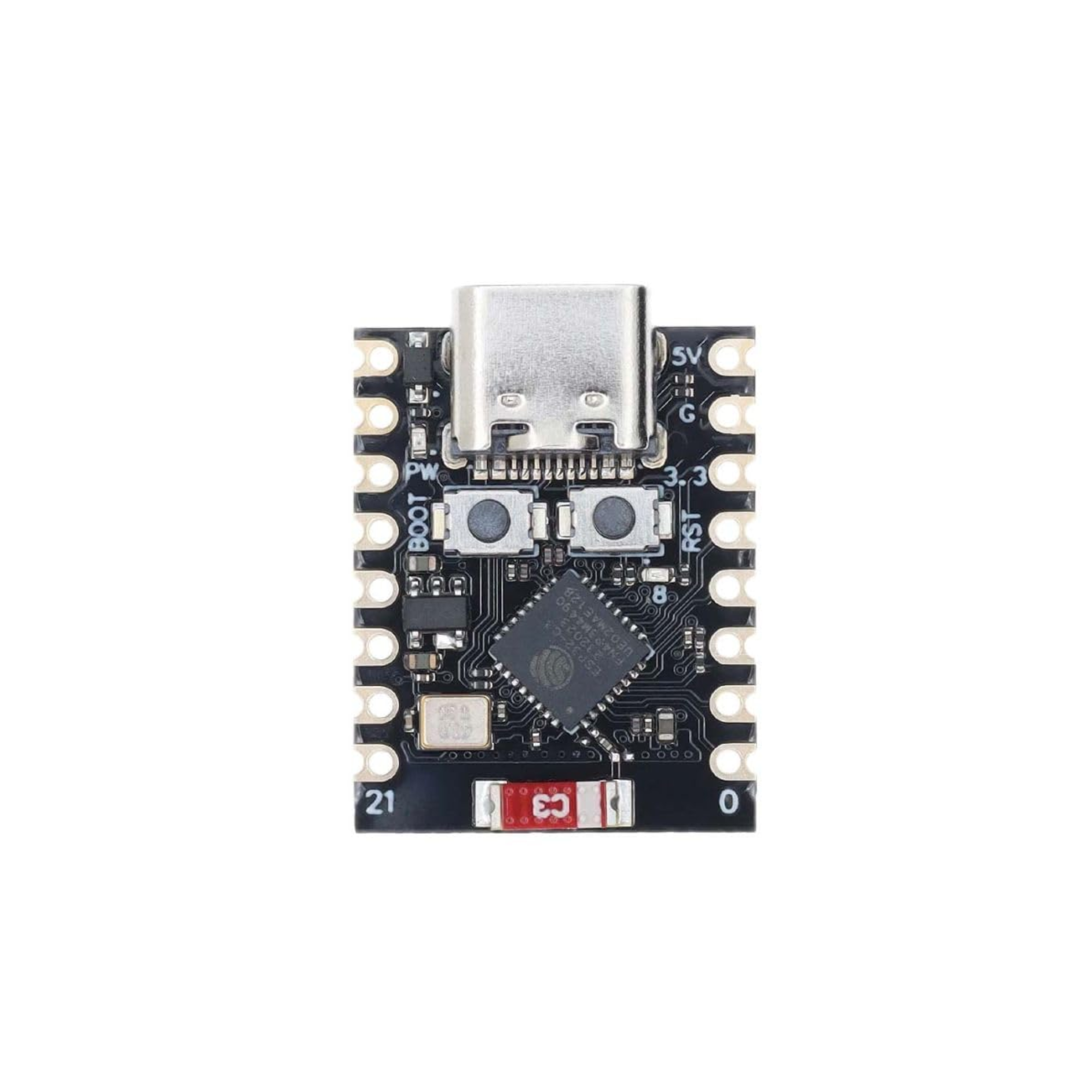

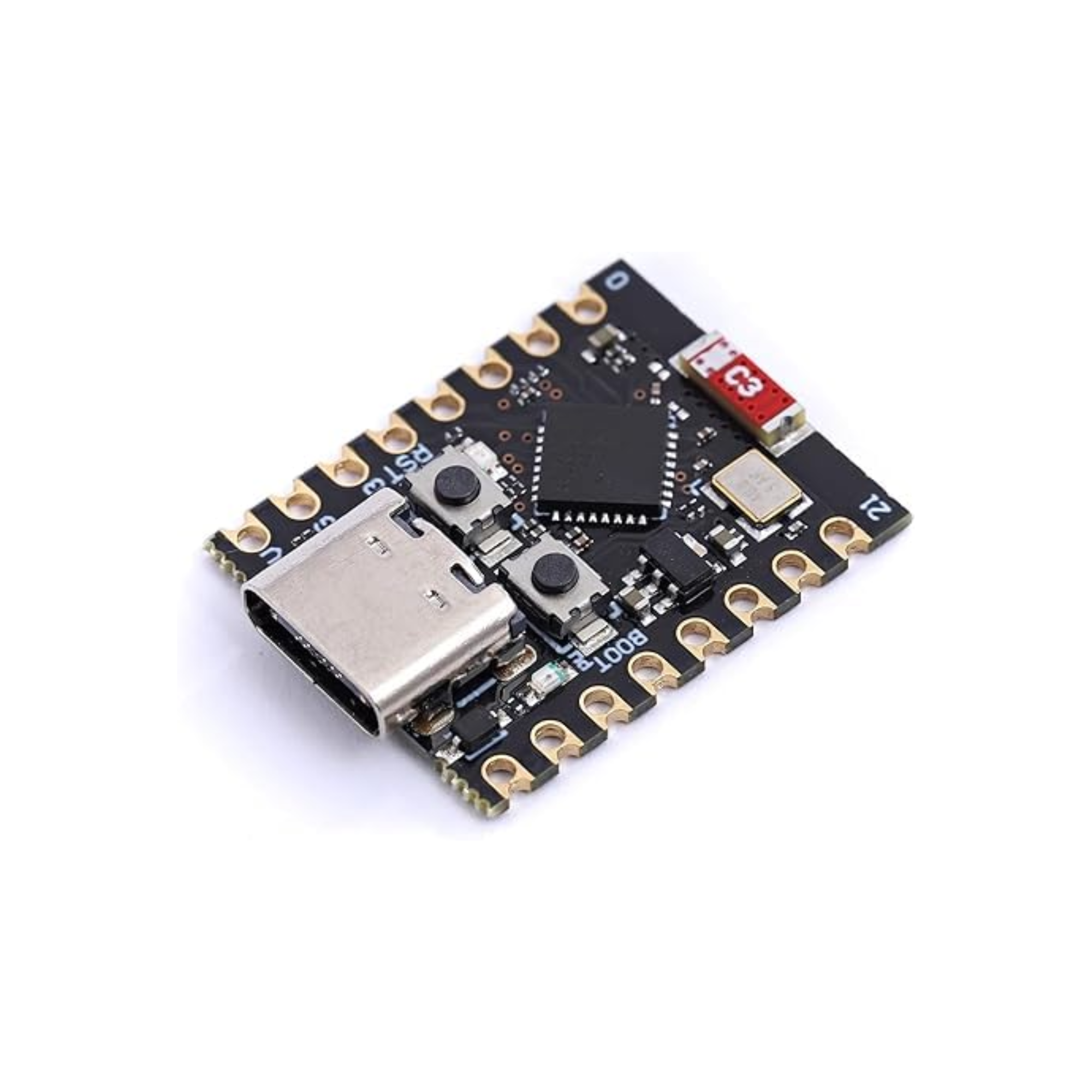

ESP32-C3 Super Mini USB C-Type Development Module

Description

The ESP32-C3 Super Mini is a compact development board featuring the ESP32-C3 microcontroller. With built-in Wi-Fi and Bluetooth connectivity, it offers a range of GPIO pins and interfaces for versatile IoT applications. This board is known for its small size, low power consumption, and compatibility with popular development environments like Arduino IDE and ESP-IDF. Ideal for various projects requiring wireless connectivity and embedded computing capabilities. 1 SRAM: 384 KB 2 Wi-Fi: 802.11 b/g/n (2.4 GHz) 3 Bluetooth: BLE 5.0 4 GPIO Pins: Multiple GPIO pins 5 Interfaces: UART, SPI, I2C, I2S, ADC, DAC, PWM 6 Development Environment: Arduino IDE, ESP-IDF, MicroPython 7 Features: Compact size, low power consumption 8 Applications: IoT, smart home, wearables, sensor nodes

Specifications

• Microcontroller: ESP32-C3
• Core: Single-core 32-bit RISC-V
• Clock Speed: Up to 160 MHz
• Flash Memory: 4 MB
• RAM: 400 KB SRAM
• Wi-Fi: IEEE 802.11 b/g/n
• Bluetooth: BLE 5.0
• Power Supply: 3.3V, 5V (C-Type USB)
• Operating Voltage: 3.3V
• Temperature Range: -40°C to +85°C

Helpful Link

👉Getting Started Tutorial ESP32-C3
