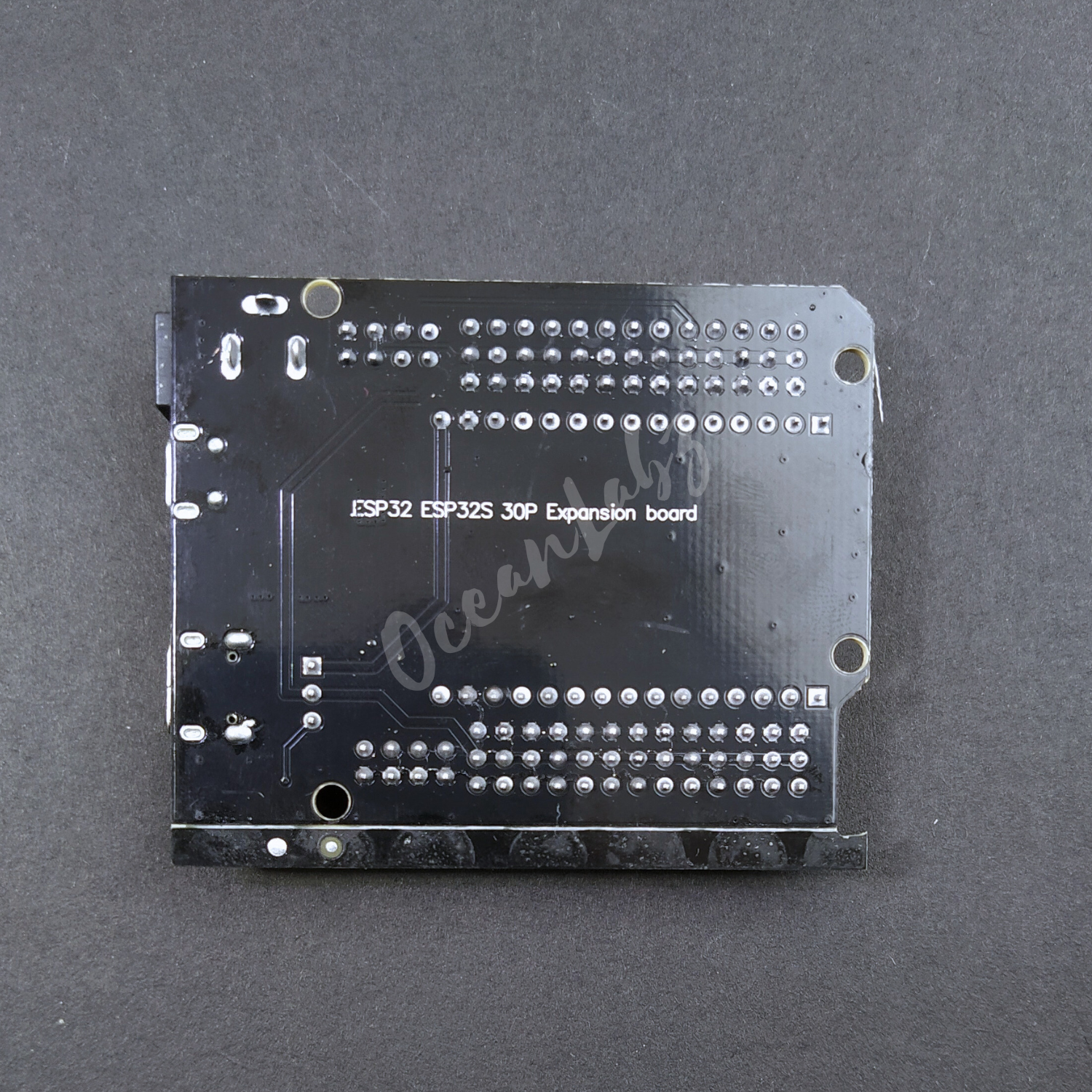

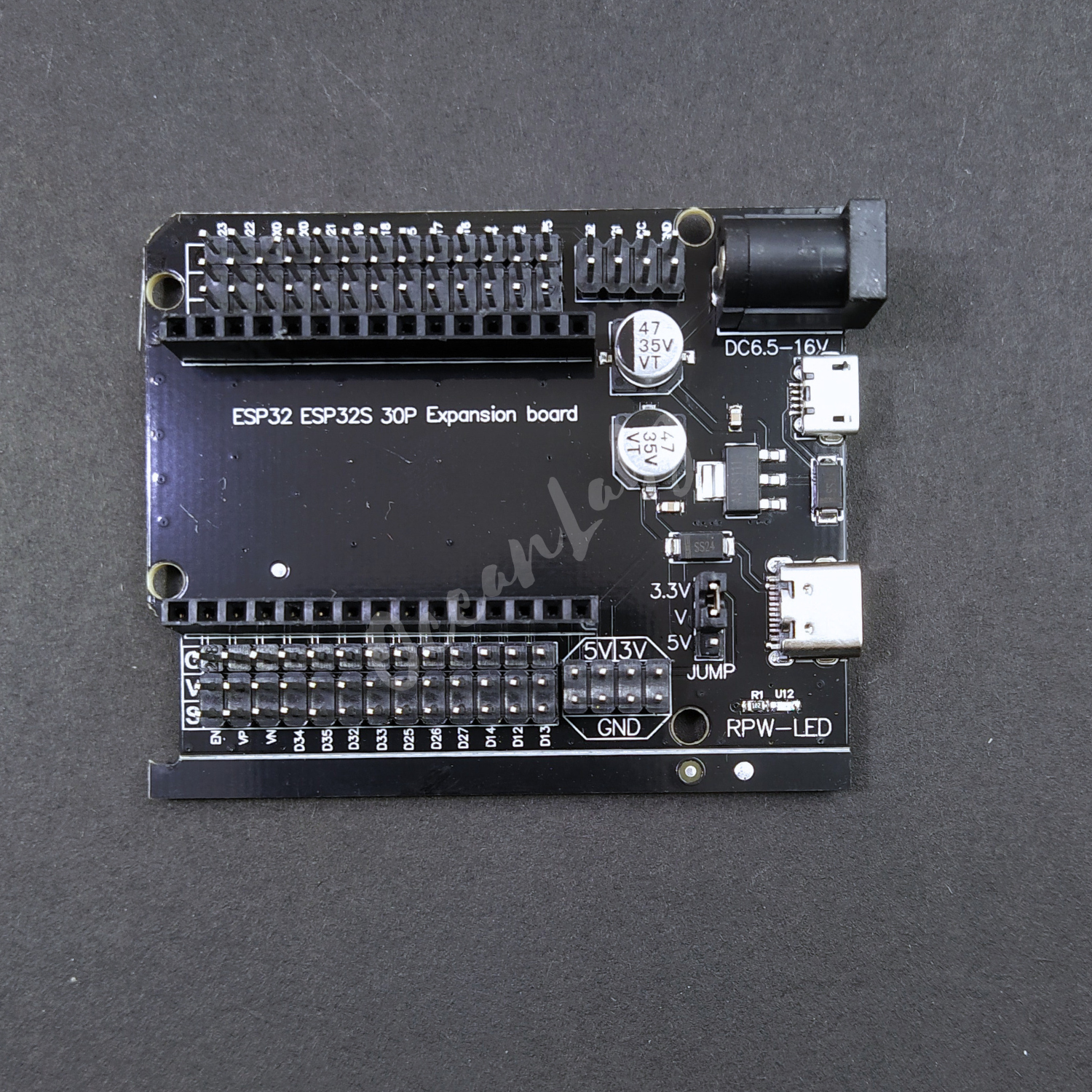

The ESP32 30-pin Expansion Board is designed to expand the I/O capabilities of ESP32 modules. With 30 pins, it offers additional GPIO pins and breakout pins for various interfaces such as UART, SPI, and I2C. This board facilitates prototyping and project development with ESP32-based systems.
TECHNICAL SPECIFICATION
Type: Expansion Board
Compatibility: ESP32 modules
Pin Count: 30
Features: Additional GPIO, breakout pins for interfaces
Use: Prototyping, project development
1 review for ESP-32 ESP32S Expansion Board 30 Pin
Rated 4 out of 5
–Suresh
I received your ESP expansion Board and ESP32 wroom 32C. However, there is a connectivity issue between the exp board and ESP32. When I connect the PC to the USB C socket on the Exp board, it powers the ESP 32 but fails to communicate. When the cable is connected to the ESP 32 it connects immediately.
Is there a jumper to be set or some other issue needs to be sorted. Pls help.
– Suresh
I received your ESP expansion Board and ESP32 wroom 32C. However, there is a connectivity issue between the exp board and ESP32. When I connect the PC to the USB C socket on the Exp board, it powers the ESP 32 but fails to communicate. When the cable is connected to the ESP 32 it connects immediately.
Is there a jumper to be set or some other issue needs to be sorted. Pls help.
