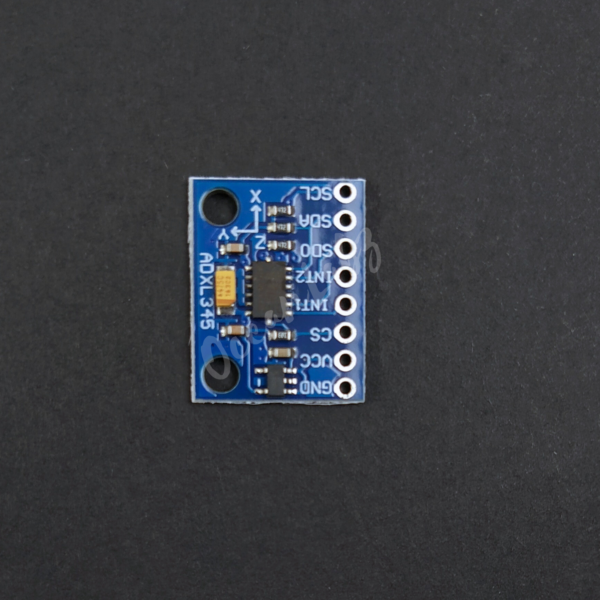

This new version adds two standoff holes as well as an extra decoupling capacitor. The ADXL345 is a small, thin, low power, 3-axis MEMS accelerometer with high resolution (13-bit) measurement at up to +-16 g. Digital output data is formatted as 16-bit twos complement and is accessible through either a SPI (3- or 4-wire) or I2C digital interface.
The ADXL345 is well suited to measures the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion or shock. Its high resolution (4 mg/LSB) enables measurement of inclination changes less than 1.0 degrees;.
TECHNICAL SPECIFICATION
- Type: Accelerometer Board
- Sensor: ADXL345
- Axes: Triple axis (X, Y, Z)
- Interface: I2C or SPI
- Resolution: 10-bit or 13-bit
- Range: ±2g, ±4g, ±8g, or ±16g
- Features: High-resolution measurement, low power consumption, digital output
- Applications: Robotics, motion tracking, tilt sensing
- Compatibility: Various microcontrollers
