Introduction
If you’re looking to build a wireless audio system using the powerful and affordable ESP32, this guide is for you. In this post, you’ll learn how to stream high-quality audio over Bluetooth using the ESP32 and output it to an external DAC via the I2S protocol. Whether you’re making a DIY Bluetooth speaker, audio receiver, or just experimenting with wireless audio, this tutorial will walk you through the essential steps.
What You’ll Learn
- Basics of Bluetooth A2DP audio streaming with ESP32
- Setting up I2S output on the ESP32
- Connecting and using an external DAC (like CJMCU1334)
- Playing audio from your smartphone to ESP32
Hardware Required
- ESP32 Development Board
- External DAC (CJMCU1334)
- Amplifier (PAM8403)
- Speakers
- Power supply (USB or battery)
- Jumper wires and breadboard
Understanding Bluetooth Audio with ESP32
ESP32 supports A2DP (Advanced Audio Distribution Profile), allowing it to act as a Bluetooth sink—receiving audio from phones or computers. It decodes the audio and sends it out via the I2S interface to a DAC or amplifier.

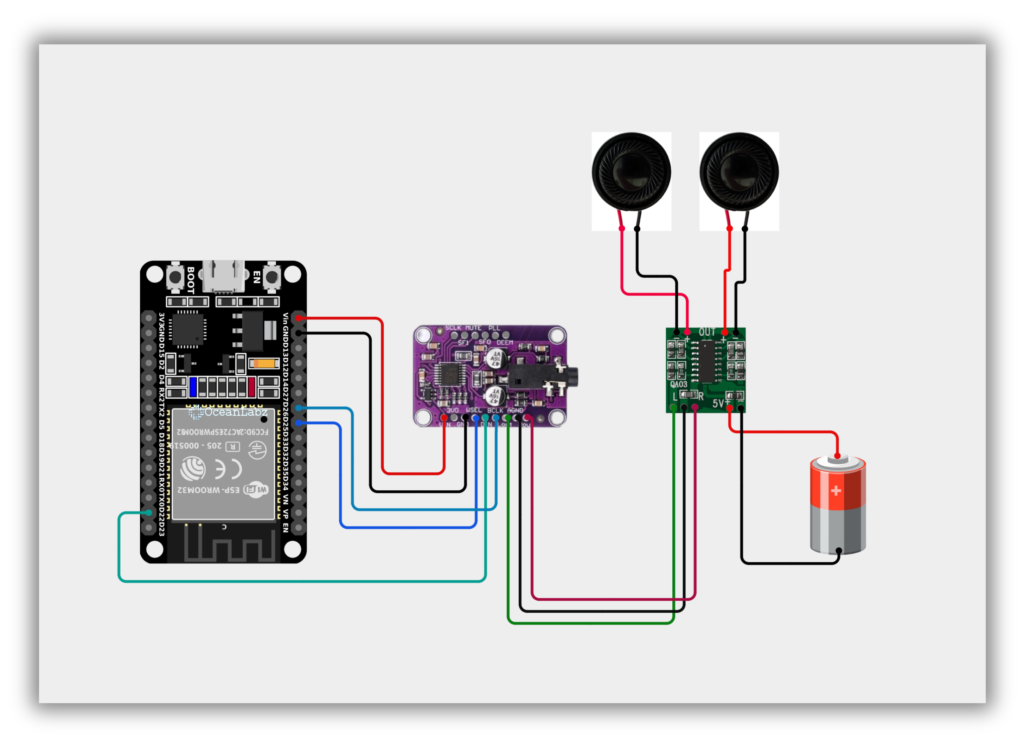

Circuit Diagram / Wiring
- ESP32 → CJMCU-1334 (I2S Interface)
- GPIO 26 of ESP32 → BCLK on CJMCU-1334
- GPIO 22 of ESP32 → DIN on CJMCU-1334
- GPIO 25 of ESP32 → WSEL on CJMCU-1334
- CJMCU-1334 → PAM8403
- LOUT of CJMCU-1334 → L-IN on PAM8403
- ROUT of CJMCU-1334 → R-IN on PAM8403
- GND of CJMCU-1334 → GND on PAM8403
- PAM8403 → Speakers
- L-OUT → Left Speaker
- R-OUT → Right Speaker
- PAM8403 VCC → 5V Power
- GND → Ground
ESP32 Code
Test It
- Upload the code.

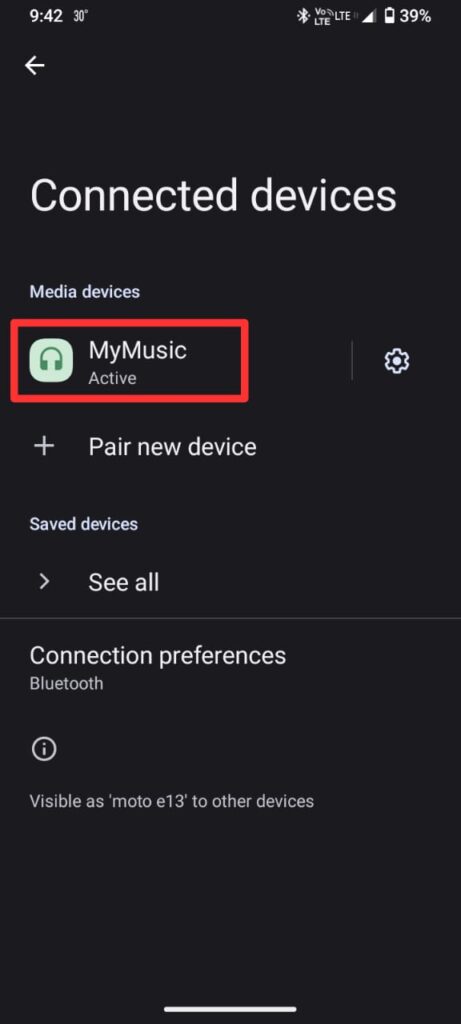

- Open Bluetooth on your phone, and connect to MYMusic.
- Play a song — sound will be heard from both speakers!
Tips
- Keep wires short between ESP32 and DAC to reduce noise.
- Mount the PAM8403 and speakers on a small wooden or acrylic enclosure for better sound.
- Use heat sinks on PAM8403 if driving near max volume.
