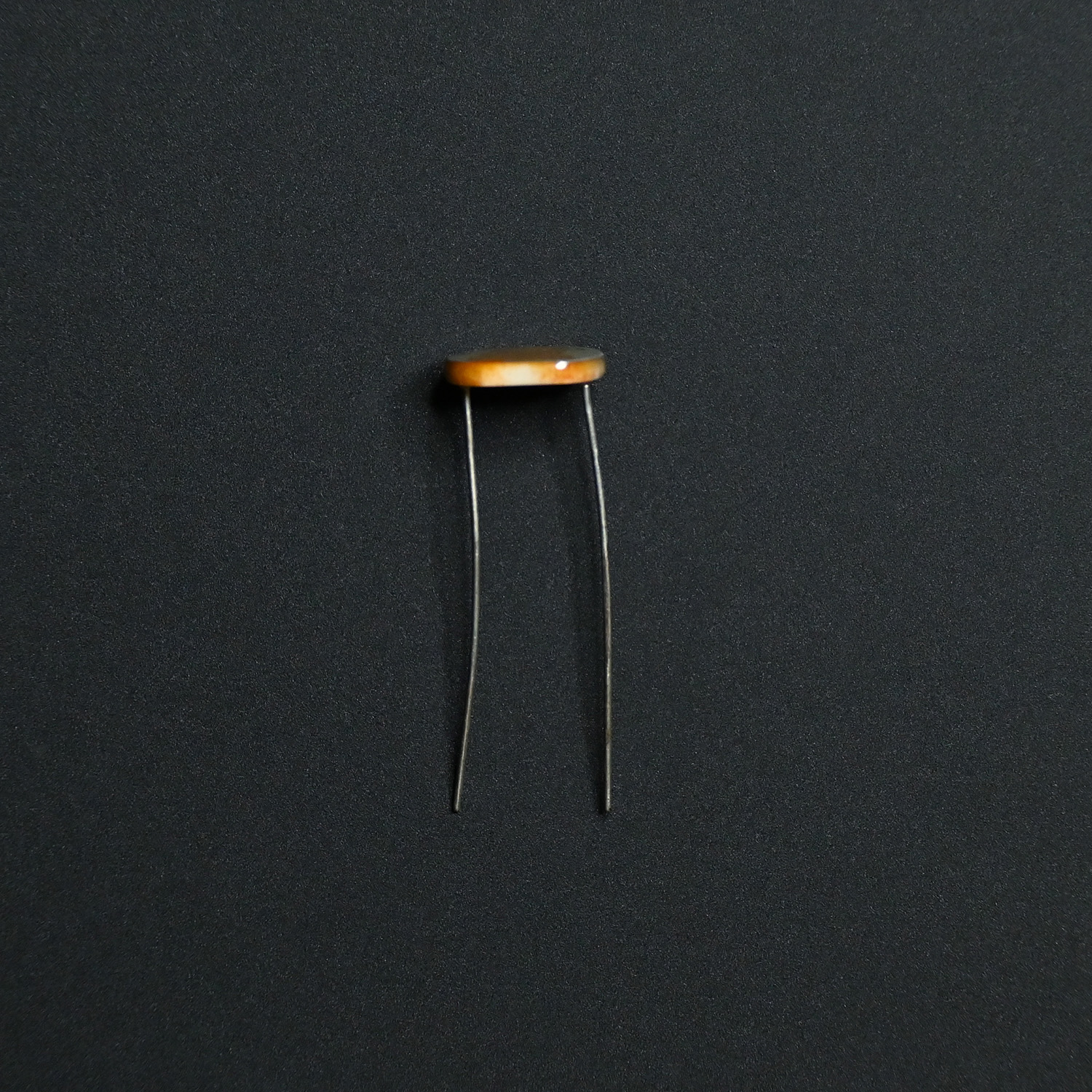

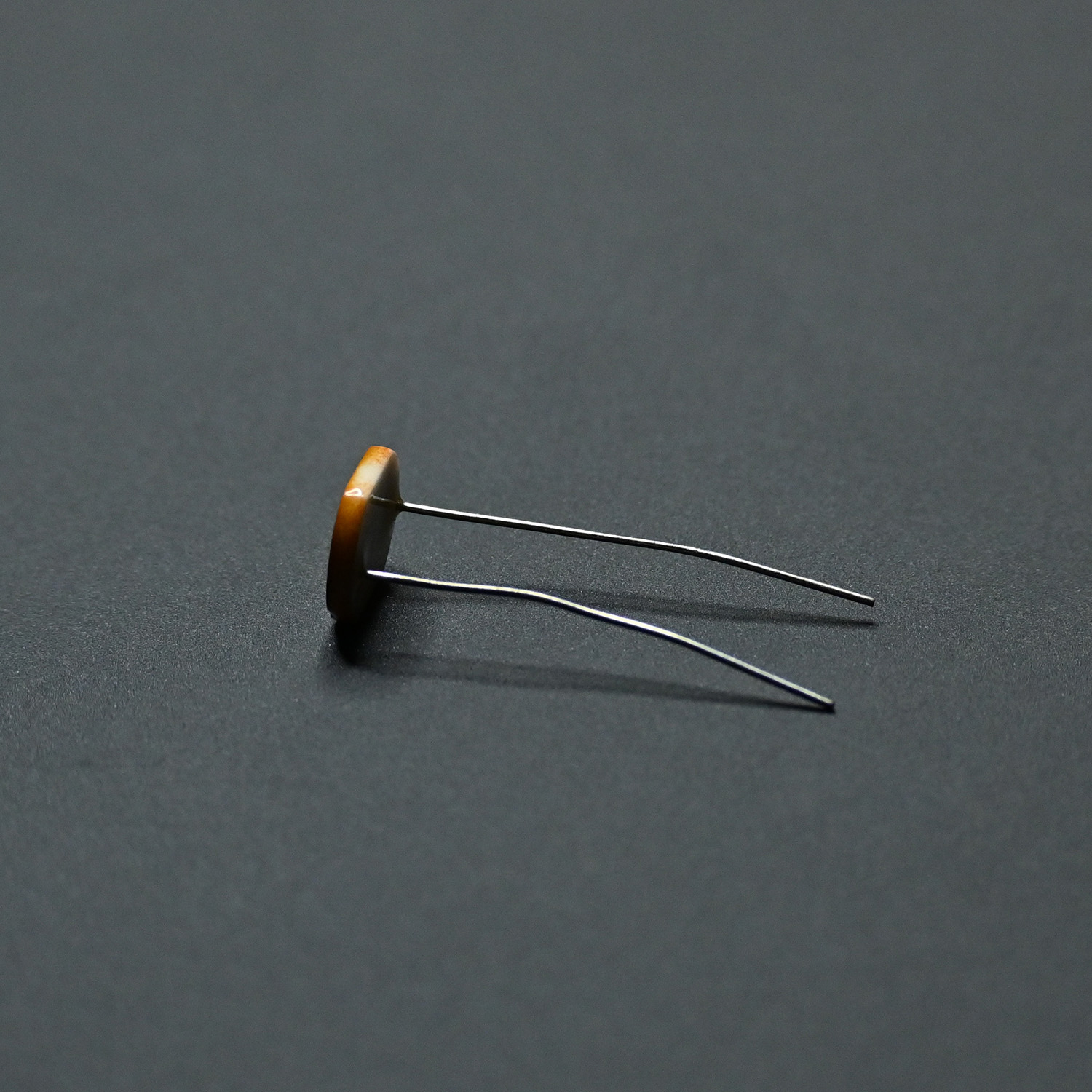

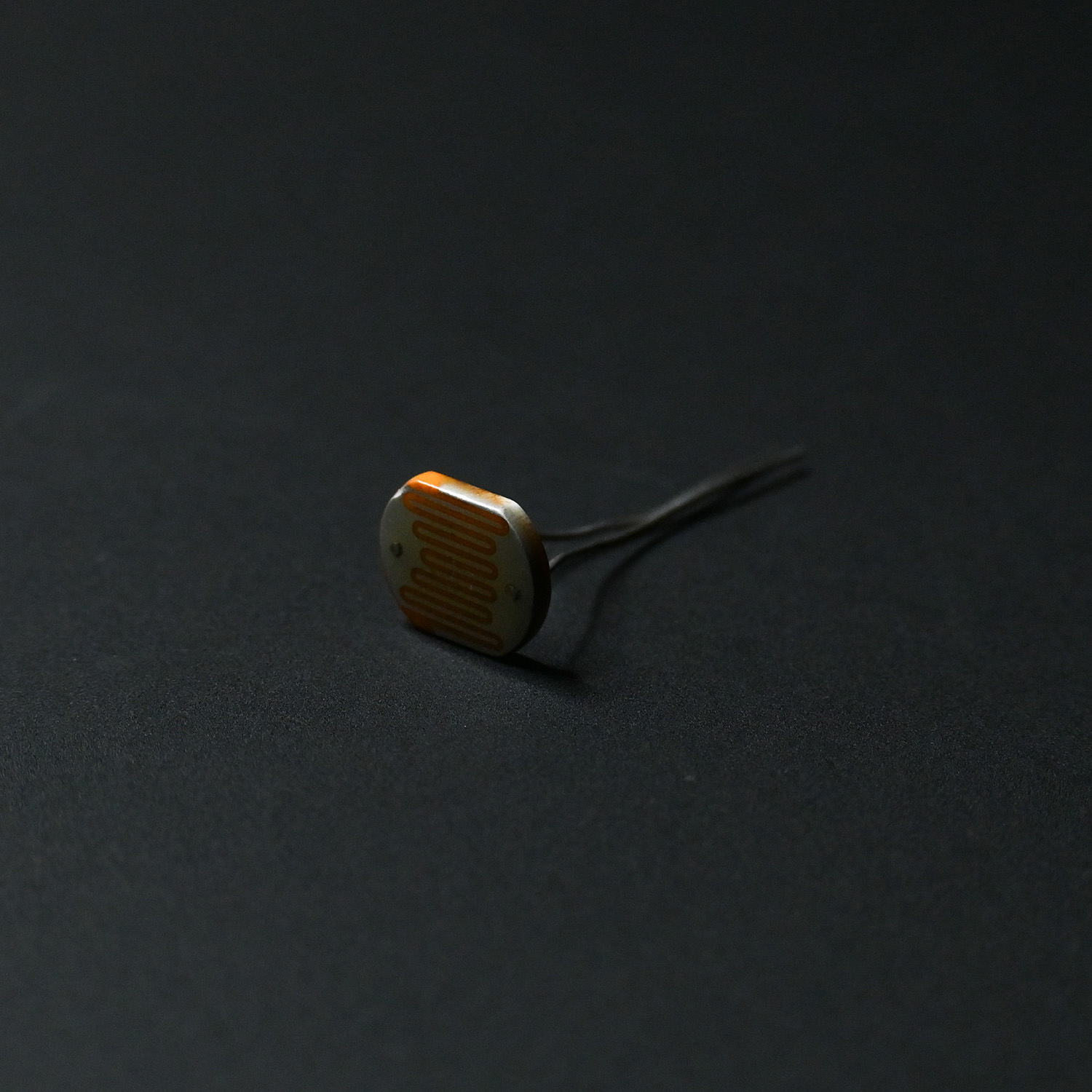

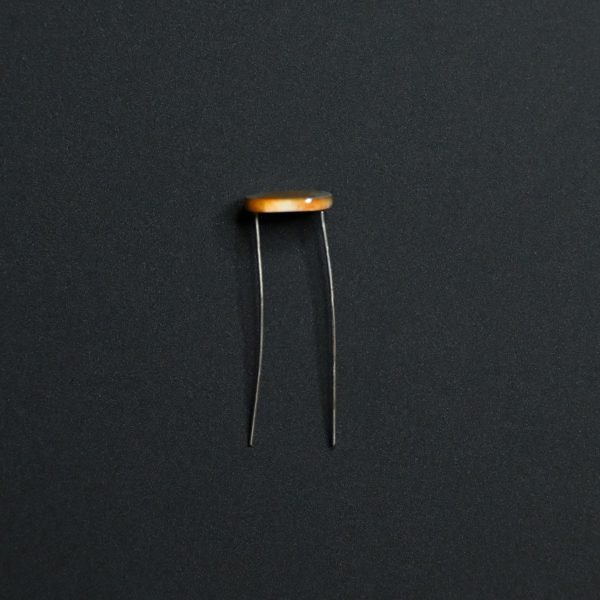

A photoresistor (also known as a light-dependent resistor, LDR, or photo-conductive cell) is a passive component that decreases resistance with respect to receiving luminosity (light) on the component’s sensitive surface. The resistance of a photoresistor decreases with increase in incident light intensity; in other words, it exhibits photoconductivity.
FEATURES & SPECIFICATIONS
- Diameter: 12 mm
- No. of pins: 2
- Type of mounting: PCB Through Hole
- Maximum Operating Temperature: +70˚C (Approx.)
- Dark resistance: 1-20MΩ
- Spectral peak: 560nm
- Maximum voltage: 250 VDC
- Maximum wattage: 200 mW
- Light resistance (10 Lux): 10-20 KΩ
- Dark resistance: 2 MΩ
- Resistance illumination: 3
- Response time: 20ms (Rise), 30ms (Down)
